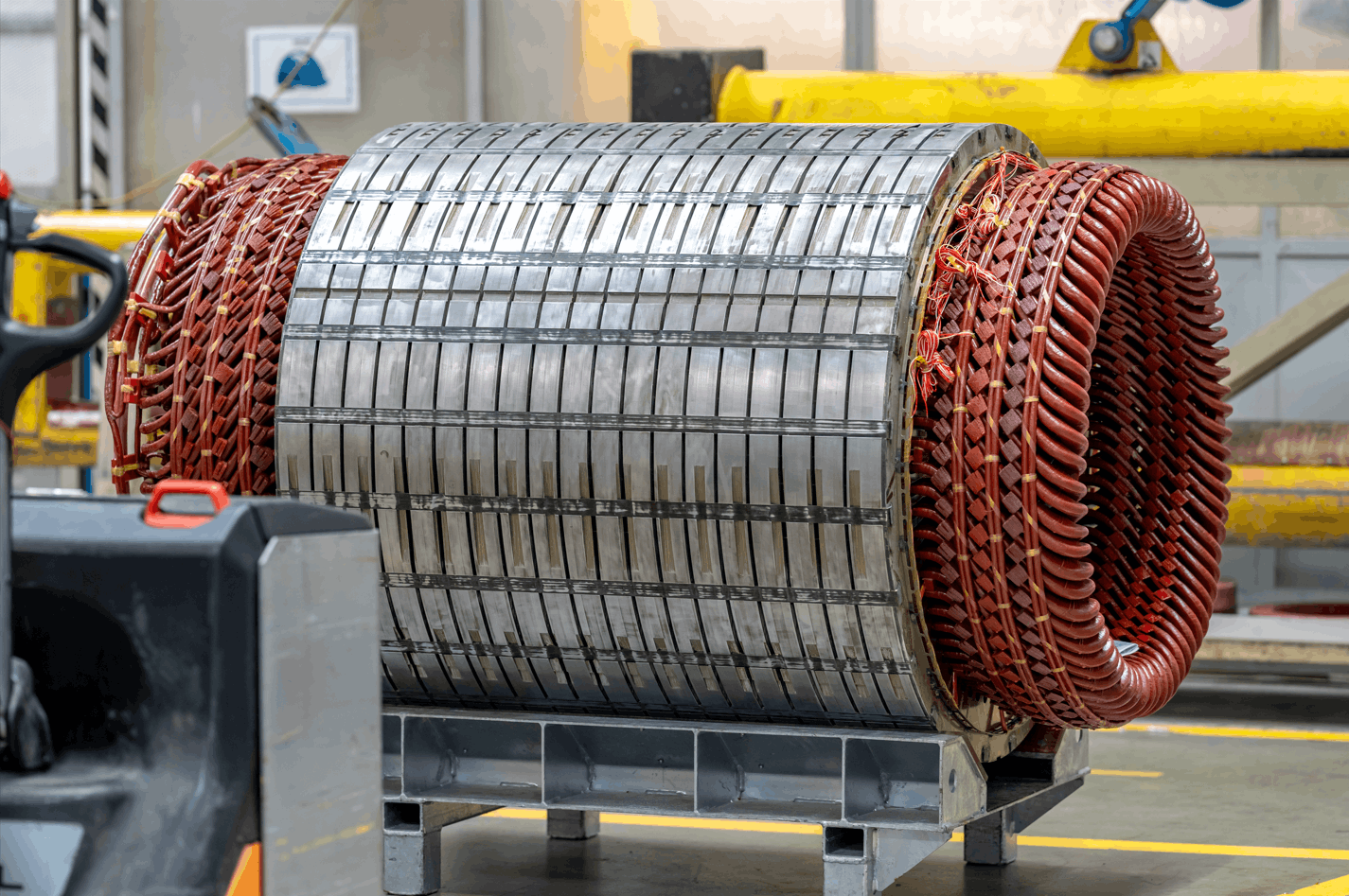

Ultrasonic Cleaning for DC Motor Armatures
DC motors are core to many industrial processes – and the armatures at their core directly impact reliability, efficiency, and lifespan.
DC armature performance relies on efficient electrical flow and effective heat dissipation. But during operation they are exposed to carbon dust, oil and grease, dirt and metal particles, oxidation and burnt residues. This contamination can become embedded deep within the windings and on the commutator, leading to overheating and reduced efficiency if not removed.
Ultrasonic Cleaners for DC Motor Armatures
Traditional cleaning methods often fall short:
- Manual cleaning is labor-intensive and inconsistent
- Solvent cleaning may not fully penetrate to every surface and can leave residues
- Mechanical methods risk damaging insulation and delicate components
Ultrasonic cleaning provides a level of consistent and quality cleaning that is difficult to achieve with any other method:
- Removes embedded carbon, oil, and debris from deep within windings
- Cleans thoroughly without damaging insulation or protective coatings
- Delivers fast, consistent results across every cycle, reducing rework
At UPC, we design advanced ultrasonic cleaning systems that provide a non-destructive, highly efficient solution for restoring armatures to peak electrical performance, extending the life of your critical DC motor assets.
| Inside Dimensions | 67"x120"x52"D |
| Overall Dimensions | 73"x130"x64"H |
| Frequency | 40kHz standard (25, 68, 170 kHz available) |
| Power Requirements | 240V Single Phase (other voltages available) |
| Ultrasonic Power | 20000W Average / 40000W Peak |
| Heat Power | 30000W |
| Construction Material | Stainless Steel |
| Controls | Digital Timer and Digital Temperature |
Trusted by the Best
DC Armature Cleaning Guidelines
| Detergent | SP Degreaser | Optimal detergent as it is compatible across the mixed metal components typically found in armature assemblies |
| Dilution | 10% | |
| Temperature | 120-130°F | Keep within this range to prevent discoloration of copper windings |
| Rinse | Double rinse | Recommended after cleaning to ensure complete detergent removal before drying |
| Frequency | 40kHz | |
| Cycle time | 5–20 minutes | Optimal cleaning time depends on the level of contamination and the components involved |
Challenges and Benefits of Cleaning DC Motor Armatures
DC armatures operate in demanding environments where even small amounts of contamination can have a direct impact on performance.
As brushes wear, carbon dust accumulates in commutator slots and between windings. This can create conductive paths, leading to short circuits, arcing, and overheating. Over time, these conditions accelerate insulation breakdown and increase the risk of premature motor failure.
At the same time, lubricating greases, machining oils, and general debris can coat winding surfaces and become embedded deep within the armature. This contamination acts as an insulating layer, reducing heat dissipation and raising operating temperatures.
Traditional cleaning methods have real limitations. Mechanical cleaning isn’t precise enough and can cause damage. Solvent cleaning is slow and brings safety and environmental risks – and still misses contamination embedded in tight spaces. Manual scrubbing risks damaging delicate windings and is inconsistent by nature.
Ultrasonic cleaning is precise and delicate. It reaches every submerged surface simultaneously, delivering a uniform result across the entire component, including complex winding structures and internal surfaces.
Why Does Ultrasonic Cleaning Work for DC Motor Armatures?
Ultrasonic cleaning works by creating microscopic cavitation in a liquid, producing a scrubbing action that removes contamination from both surfaces and internal structures.
As a submersion process, it reaches significantly deeper into commutator slots and between tightly packed windings than spray-based or line-of-sight cleaning methods, accessing areas that no other cleaning method can reach.
The ultrasound frequency determines the size and power of the bubbles – smaller bubbles are gentle and can reach the tiniest spaces, while larger bubbles provide a more powerful cleaning action.
Parameters such as the ultrasound frequency, temperature, power, cleaning fluid, and cleaning cycle time can all be configured to deliver the optimum cleaning process for a specific application.
Ultrasonic cleaning is a versatile technology that effectively addresses the specific challenges of DC motor armatures. It offers a fast, effective, and non-abrasive solution that can be tailored to the unique requirements of these critical components.
Ultrasonic Cleaners for Rent
We offer a range of our most popular ultrasonic cleaners for rent on a 30-day try-before-you-buy basis or as a long-term rental option.
Add Ultrasonics to Your Existing Tank
Already have a restoration cleaning tank? Upgrade it with UPC's immersible transducers. Our sealed transducer modules add ultrasonic power to your existing equipment without replacing your entire system.
Available in multiple mounting configurations and custom sizes to fit your tank.
Is ultrasonic cleaning safe for DC armature windings and insulation?
Ultrasonic cleaning is safe for DC armatures as long as the correct parameters are applied. Several factors impact the performance of an ultrasonic cleaner, including the ultrasound frequency, detergent, temperature, load positioning, and cycle time.
It’s important to use the right combination of factors for effective cleaning without damaging the parts. Contact us for advice on the best setup for your application.
Read about the factors affecting the ultrasonic cleaning process
What contaminants can ultrasonic cleaning remove from DC armatures?
Our ultrasonic cleaners for DC armatures effectively remove carbon brush dust, lubricating and assembly greases, machining oils, oxidation and burnt residues, and general soiling.
It’s vital to use the right cleaning agent for your application. All our detergents are specifically formulated to work with our cleaning systems and deliver optimal results. For guidance on selecting the right detergent for your specific application, see our detergent selection guide.
What size ultrasonic cleaner do I need for armature cleaning?
The right size depends on the dimensions of the armatures you're cleaning. Smaller armatures can be cleaned in our benchtop range, while our large cleaning systems are suitable for larger industrial armatures. We also design and build custom tanks for large armatures. We can recommend the optimum tank size for your specific application.
Will ultrasonics damage the winding insulation or varnish?
No, as long as the recommended process and parameters are used, ultrasonic cleaning will remove surface contaminants without damaging the insulation or varnish.
Does the armature need to be disassembled before cleaning?
Disassembly is not required but may improve cleaning results and efficiency.
Can the same system clean other motor components?
Yes – our ultrasonic cleaners are versatile systems that can clean a wide range of motor and electrical components. This makes a single UPC system a practical investment for facilities that need to handle mixed component cleaning. We can advise on how best to use an ultrasonic cleaning system for multiple applications.
How long does the armature cleaning cycle take?
Most armatures can be cleaned in 5–20 minutes depending on the level of contamination and the components involved. Heavily soiled armatures or those with significant carbon buildup may benefit from a longer cycle or a pre-rinse.
What are the benefits of ultrasonic cleaning for DC Motor Armatures?
A key benefit of ultrasonic cleaning is speed. An ultrasonic cleaning cycle typically takes minutes, delivering superior results at a lower cost. Ultrasonic cleaning is precise and thorough yet gentle and non-abrasive, preserving the integrity and quality of even the most delicate items.
As a submersion process, ultrasonic cleaning also reaches significantly deeper into winding structures than spray-based or line-of-sight cleaning methods, resulting in a more thorough clean and a higher quality end result. The process is sustainable and safe, supporting the environmentally friendly work practices that are required by modern industries.
Why choose a UPC ultrasonic cleaner for DC Motor Armatures?
Choosing a cleaner from a reputable manufacturer is essential for ensuring consistent, high-quality results. At UPC, we have decades of experience in ultrasonic cleaning applications. All our cleaners are built in the USA using advanced technology and are backed by our comprehensive, standard warranty.
