Three Tank BenchTop Ultrasonic Cleaner With Ultrasonic Wash, Rinse, Rinse

This multistage benchtop ultrasonic wash, rinse, rinse system is designed and manufactured by UPC in Freeport, Illinois for precision cleaning applications requiring multiple processing stages without automation. The system consists of a benchtop ultrasonic immersion wash tank followed by two separate rinse stations, allowing for controlled removal of contaminants and cleaning solutions while maintaining a compact footprint and operator flexibility. The system available in multiple benchtop sizes, including BT-60, BT-130, and BT-330 models, and can be configured with ultrasonic frequencies of 40kHz for the wash stage, followed by ultrasonic rinse frequencies of 68kHz and 130kHz to ensure progressive and thorough cleaning across a wide range of part geometries and contamination types.

Request a Quote

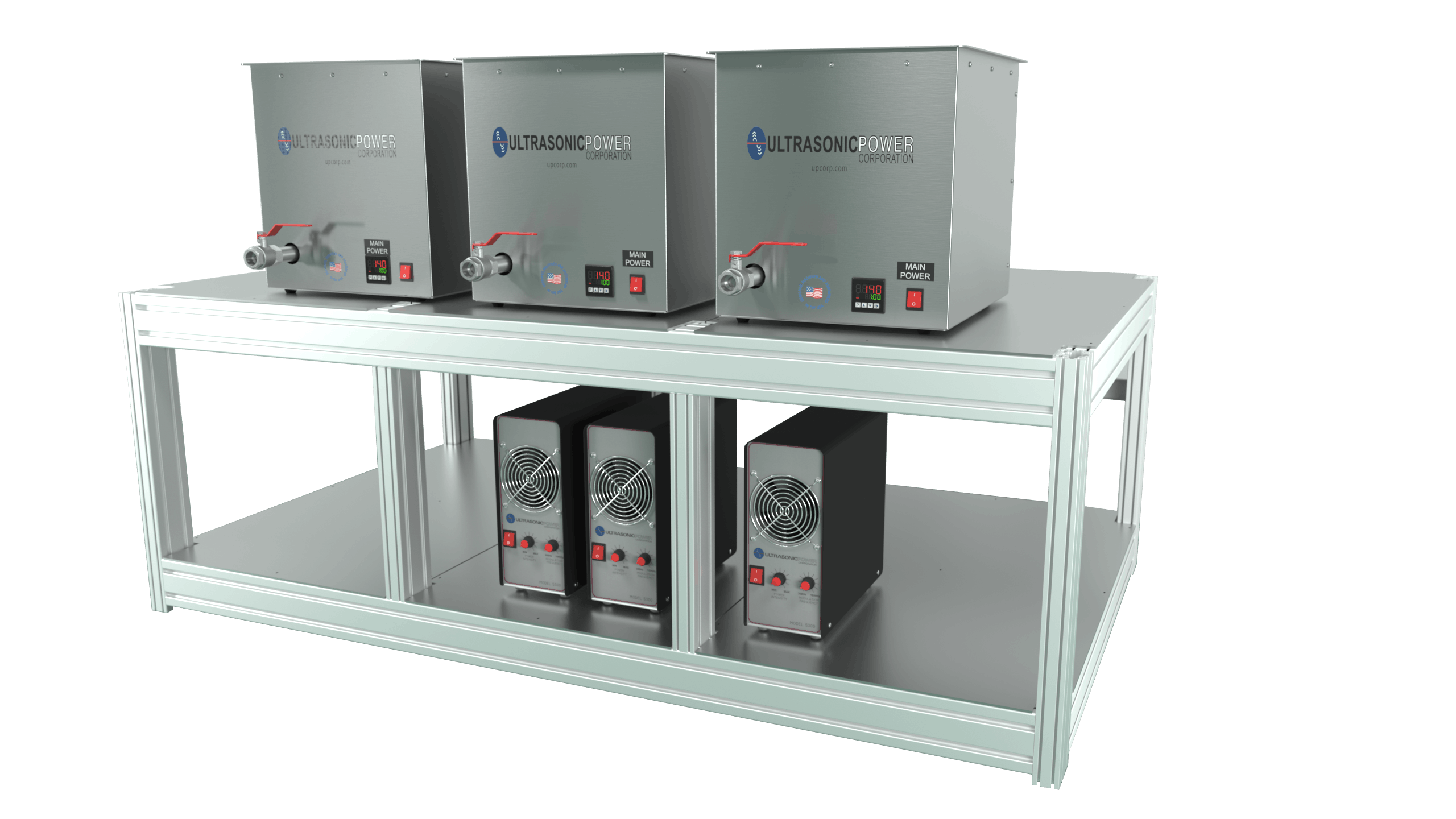

Multi-Tank Ultrasonic Cleaner
BT 60BT 130BT 330
Inside Dimensions11"x14"x11"D14"x20"x14"D18"x24"x18"D
Overall Dimensions18"x15"x14"H24"x18"x17"H22"x28"21"H
Frequency40kHz standard (25, 68, 170 kHz available)40kHz standard (25, 68, 170 kHz available)40kHz standard (25, 68, 170 kHz available)
Power Requirements240V240V240V
Ultrasonic Power500W Average / 1000W Peak1000W Average / 2000W Peak1500W Average / 3000W Peak
Heat Power500W1000W2000W
Construction MaterialStainless SteelStainless SteelStainless Steel
ControlsDigital TemperatureDigital TemperatureDigital Temperature

Select Your Tank Options and Sizes

Tank options include

  • Spray (ultrasonic or non-ultrasonic)
  • Immersion (ultrasonic or non-ultrasonic)
  • Cascading (ultrasonic or non-ultrasonic)
  • Drying (air blow-off station or hot air dryer)
  • Flammable solvent (IPA)



While we offer standard tank sizes and accessories such as the digitally controlled heater, we can produce a custom design if needed. Looking at 4-stage ultrasonic cleaning systems? Cleaners can be customized for as many stages as needed. Contact us today to find out how we can design a system tailored to your unique needs.



Large Industrial Ultrasonic Cleaners

Industrial Benchtop Ultrasonic Cleaners

All Standard Benchtop Sizes

No Job Too Big or Too Small

Ultrasonic Power Corporation’s ultrasonic cleaning systems are constructed to handle any job. From six ounces to 2000+ gallons these systems are engineered and manufactured to meet your specifications. Our ultrasonic cleaners deliver the same repeatable performance from the smallest machined part to the largest engine block - and everything in between.

Custom Sizes

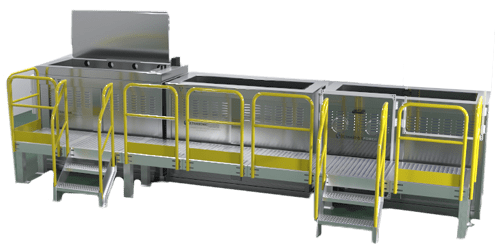

Large Custom Three Tank Ultrasonic Cleaning System
