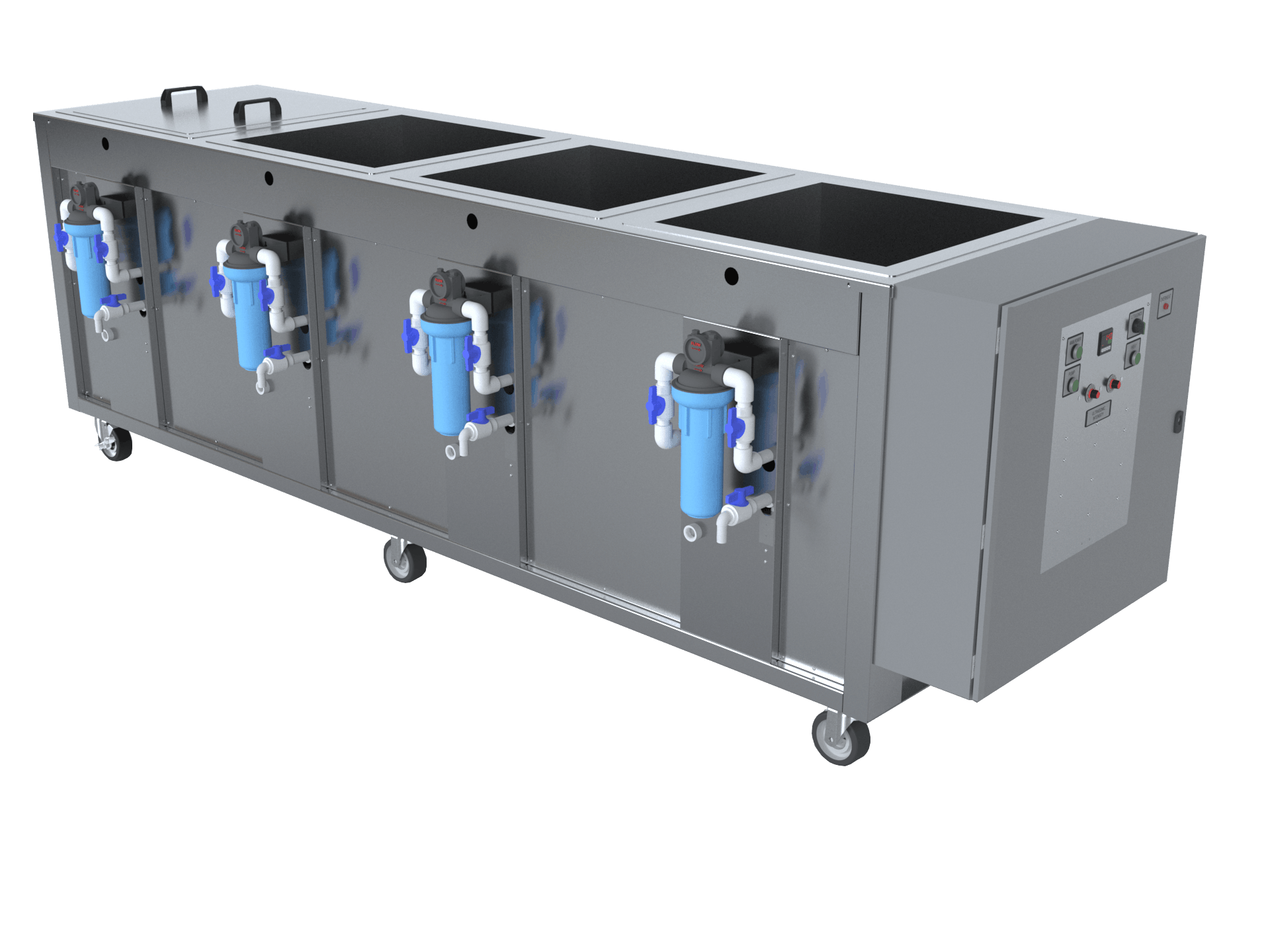

Four Tank Ultrasonic Console
This ultrasonic cleaning system is designed as a precision ultrasonic cleaning system. The system provides a four-stage wash: Four 40kHz ultrasonic wash tanks in single console.
The equipment is stainless steel exterior frame with all stainless steel tanks and a stainless steel countertop. The ultrasonic generators are located within the frame of the console. Controls are located so they can be accessed from the front of the console. Console include heavy duty 5” locking castors for easy transport.
.png)
| Ultrasonic Wash Tank | Ultrasonic Wash Tank | Ultrasonic Wash Tank | Ultrasonic Wash Tank | |
|---|---|---|---|---|
| Inside Dimensions | 24"x24"x16"D | 24"x24"x16"D | 24"x24"x16"D | 24"x24"x16"D |
| Overall Dimensions | 126"x40"x43"H | |||
| Frequency | 40kHz standard (25, 68, 170 kHz available) | 40kHz standard (25, 68, 170 kHz available) | 40kHz standard (25, 68, 170 kHz available) | 40kHz standard (25, 68, 170 kHz available) |
| Power Requirements | 240V | 240V | 240V | 240V |
| Ultrasonic Power | 1500W Average / 3000W Peak | 1500W Average / 3000W Peak | 1500W Average / 3000W Peak | 1500W Average / 3000W Peak |
| Heat Power | 2000W | 2000W | 2000W | 2000W |
| Construction Material | Stainless Steel | Stainless Steel | Stainless Steel | Stainless Steel |
| Controls | Digital Temperature | Digital Temperature | Digital Temperature | Digital Temperature |
Select Your Tank Options and Sizes
Tank options include
- Spray (ultrasonic or non-ultrasonic)
- Immersion (ultrasonic or non-ultrasonic)
- Cascading (ultrasonic or non-ultrasonic)
- Drying (air blow-off station or hot air dryer)
- Flammable solvent (IPA)
While we offer standard tank sizes and accessories such as the digitally controlled heater, we can produce a custom design if needed. Looking at 4-stage ultrasonic cleaning systems? Cleaners can be customized for as many stages as needed. Contact us today to find out how we can design a system tailored to your unique needs.
Large Industrial Ultrasonic Cleaners
Industrial Benchtop Ultrasonic Cleaners
No Job Too Big or Too Small
Ultrasonic Power Corporation’s ultrasonic cleaning systems are constructed to handle any job. From six ounces to 2000+ gallons these systems are engineered and manufactured to meet your specifications. Our ultrasonic cleaners deliver the same repeatable performance from the smallest machined part to the largest engine block - and everything in between.
